Carbon Steel Threaded Rod
High-Strength Structural Fastener for Heavy-Duty Applications
✅ High Tensile Strength (Grade 4.8 / 8.8 / 10.9 / 12.9)
✅ Surface Treatment: Zinc Plated (BZP), Hot Dip Galvanized (HDG)
✅ Cost-Effective Solution for Large Construction Projects
✅ Easy cutting and installation with full-thread design
Manufactured from premium carbon steel for superior load-bearing capacity. Used for structural fastening and suspension systems: Ceiling suspension systems, Construction anchoring, HVAC installation, Pipe and equipment hanging.
Specifications

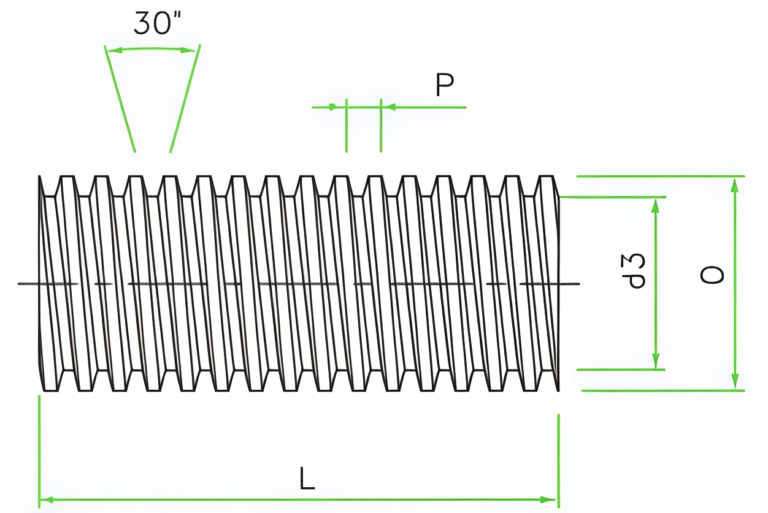

| Diameter (Metric) | Diameter (Inch) | Pitch | Length (L) mm | Surface | Metric Grades | Standards |
|---|---|---|---|---|---|---|
| M20 | 3/4" | P2.5 | 500 / 600 / 1200 / 1500 | BZP / HDG / YZP | 4.8 / 8.8 / 10.9 / 12.9 | DIN 975 / DIN 976 ASTM A193 (Grade B7) |
| M24 | 1" | P3 | 1600 / 2100 / 2300 | BZP / HDG / YZP | 4.8 / 8.8 / 10.9 / 12.9 | DIN 975 / DIN 976 ASTM A193 (Grade B7) |
| M30 | 1 1/4" | P3.5 | 2400 / 2600 / 2700 | BZP / HDG / YZP | 4.8 / 8.8 / 10.9 / 12.9 | DIN 975 / DIN 976 ASTM A193 (Grade B7) |
| M36 | 1 1/2" | P4 | 2800 / 3000 | BZP / HDG / YZP | 4.8 / 8.8 / 10.9 / 12.9 | DIN 975 / DIN 976 ASTM A193 (Grade B7) |
